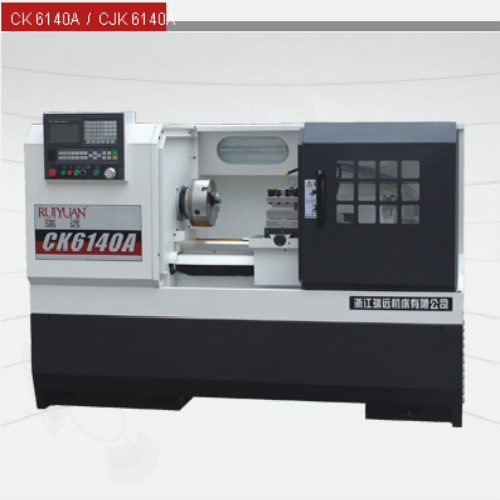

CK6140A
参数(Markter) | 型号(Type) | |||
CK6140A | ||||
加工范围 |
床身上最大回转直径 | Max swing diameter over bed | (mm) | 400 |
滑板上回转直径 | Swing diameter of sliding plate | (mm) | 200 | |
最大工件长度 | Max cutting length | (mm) | 750 | |
导轨宽度 | (mm) | 340 | ||
主轴 |
主轴转速范围 | spindle speed range | (r/min) | 200-2000(变频) |
主轴转速级数 | spindle speed step | 无级 | ||
主轴孔径 | spindle bore | (mm) | Φ52 | |
卡盘(Φ250mm)Cluck |
手动 Manual |
标配 |
||
气动 Pneumatic | 特配 | |||
液动 Hydraulic | 特配 | |||
主电机功率 | spindle motor power | (kw) | 33.3Hz.5.5kW变频 | |
进给 |
Z轴行程 | Z-axis stroke | (mm) | 800 |
X轴行程 | X-axis stroke | (mm) | 235 | |
快速移动速度 | X/Z Rapid moving speed | (m/min) | 6/8伺服 | |
最小输入单位 | X/Z Min input | (mm) | 0.001 | |
驱动电机扭矩X/Z | N.M | 伺服5/7.7 | ||
位置精度 Position Precision |
重复定位精度X/Z | Repeatability accuracy | (ISO) | 0.009/0.01 |
(排)刀架 |
卧式六工位 | Horizontal six-station | 特配 | |
四工位刀架 | Horizontal four-station | 标配 | ||
排刀架 | Tool post | 特配 | ||
车刀刀体尺寸 | Lathe tool dimension | (mm) | 25×25 | |
刀架重复定位精度 | Repelitive position precision | 0.005 | ||
刀架换刀时间 | 2s | |||
尾座 |
尾座套筒行程 | Stroke of tailstock sleeve | 130 | |
尾座套筒直径/锥孔 | Diameter/Hole of taiistock sleeve | Φ60/MT4 | ||
切削工件
|
工件精度 | Workplaces precision | IT6 | |
工件粗糙度 | Wordplaces roughness | Ra0.8 | ||
控制系统 |
广数 | 928TEa,980TB2,980TDb | 标配 | |
凯恩帝 | K100Ti-B、K1000Ti-A | 标配 | ||
瑞远航天 | 2000TA | 标配 | ||
机床尺寸 Dimensions of Tool 长×宽×高(L×W×H) (mm) | 2200×1200×1520 | |||
机床重量 Weight (kg) | 1800(参考重量) |
注:参数如有变更,以实物为准。 Note:If the parameters have any change,please follow up the real product. |
参数(Markter) | 型号(Type) | |||
CK6140B | ||||
加工范围 |
床身上最大回转直径 | Max swing diameter over bed | (mm) | 400 |
滑板上回转直径 | Swing diameter of sliding plate | (mm) | 200 | |
最大工件长度 | Max cutting length | (mm) | 750 | |
导轨宽度 | (mm) | 340 | ||
主轴 |
主轴转速范围 | spindle speed range | (r/min) | 40-1800 (机械变速) |
主轴转速级数 | spindle speed step | 12级 | ||
主轴孔径 | spindle bore | (mm) | Φ52 | |
卡盘(Φ250mm)Cluck |
手动 Manual |
标配 |
||
气动 Pneumatic | 特配 | |||
液动 Hydraulic | 特配 | |||
主电机功率 | spindle motor power | (kw) | 5/6.5KW双速 | |
进给 |
Z轴行程 | Z-axis stroke | (mm) | 800 |
X轴行程 | X-axis stroke | (mm) | 235 | |
快速移动速度X/Z | X/Z Rapid moving speed | (m/min) | 6/8伺服 | |
最小输入单位X/Z | X/Z Min input | (mm) | 伺服0.001/步进0.01 | |
驱动电机扭矩X/Z | N.M | 伺服5/7.7步进12/16 | ||
位置精度 Position Precision |
重复定位精度X/Z | Repeatability accuracy | (ISO) | 0.009/0.01 |
(排)刀架 |
卧式六工位 | Horizontal six-station | 特配 | |
四工位刀架 | Horizontal four-station | 标配 | ||
排刀架 | Tool post | 特配 | ||
车刀刀体尺寸 | Lathe tool dimension | (mm) | 25×25 | |
刀架重复定位精度 | Repelitive position precision | 0.005 | ||
刀架换刀时间 | 2s | |||
尾座 |
尾座套筒行程 | Stroke of tailstock sleeve | 130 | |
尾座套筒直径/锥孔 | Diameter/Hole of taiistock sleeve | Φ60/MT4 | ||
切削工件
|
工件精度 | Workplaces precision | IT6 | |
工件粗糙度 | Wordplaces roughness | Ra0.8 | ||
控制系统 |
广数 | 928TEa,980TB2,980TDb | 标配 | |
凯恩帝 | K100Ti-B、K1000Ti-A | 标配 | ||
瑞远航天 | 2000TA | 标配 | ||
机床尺寸 Dimensions of Tool 长×宽×高(L×W×H) (mm) | 2200×1200×1520 | |||
机床重量 Weight (kg) | 1800(参考重量) |
注:参数如有变更,以实物为准。 Note:If the parameters have any change,please follow up the real product. |
参数(Markter) | 型号(Type) | |||
CK6140E | ||||
加工范围 |
床身上最大回转直径 | Max swing diameter over bed | (mm) | 400 |
滑板上回转直径 | Swing diameter of sliding plate | (mm) | 200 | |
最大工件长度 | Max cutting length | (mm) | 750 | |
导轨宽度 | (mm) | 340 | ||
主轴 |
主轴转速范围 | spindle speed range | (r/min) | 8-325-1750(变频) |
主轴转速级数 | spindle speed step | 档内无级(二档) | ||
主轴孔径 | spindle bore | (mm) | Φ52 | |
卡盘(Φ250mm)Cluck |
手动 Manual | 标配 | ||
气动 Pneumatic | 特配 | |||
液动 Hydraulic | 特配 | |||
主电机功率 | spindle motor power | (kw) | 33.3Hz.5.5kW变频 | |
进给 |
Z轴行程 | Z-axis stroke | (mm) | 800 |
X轴行程 | X-axis stroke | (mm) | 235 | |
快速移动速度 | X/Z Rapid moving speed | (m/min) | 6/8伺服 | |
最小输入单位 | X/Z Min input | (mm) | 0.001 | |
驱动电机扭矩X/Z | N.M | 伺服5/7.7 | ||
位置精度 Position Precision |
重复定位精度X/Z | Repeatability accuracy | (ISO) | 0.009/0.01 |
(排)刀架 |
卧式六工位 | Horizontal six-station | 特配 | |
四工位刀架 | Horizontal four-station | 标配 | ||
排刀架 | Tool post | 特配 | ||
车刀刀体尺寸 | Lathe tool dimension | (mm) | 25×25 | |
刀架重复定位精度 | Repelitive position precision | 0.005 | ||
刀架换刀时间 | 2s | |||
尾座 |
尾座套筒行程 | Stroke of tailstock sleeve | 130 | |
尾座套筒直径/锥孔 | Diameter/Hole of taiistock sleeve | Φ60/MT4 | ||
切削工件
|
工件精度 | Workplaces precision | IT6 | |
工件粗糙度 | Wordplaces roughness | Ra0.8 | ||
控制系统 |
广数 | 928TEa,980TB2,980TDb | 标配 | |
凯恩帝 | K100Ti-B、K1000Ti-A | 标配 | ||
瑞远航天 | 2000TA | 标配 | ||
机床尺寸 Dimensions of Tool 长×宽×高(L×W×H) (mm) | 2200×1200×1520 | |||
机床重量 Weight (kg) | 1800(参考重量) |
注:参数如有变更,以实物为准。 Note:If the parameters have any change,please follow up the real product. |
